Technical features

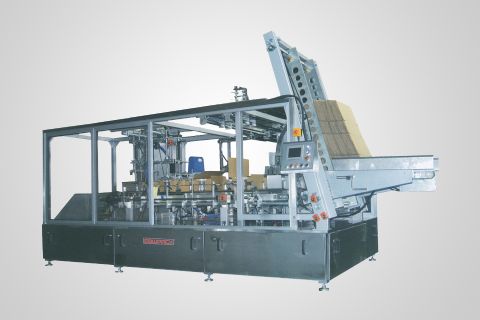

1.ZX520 chip into the bottle packing machine parts, sub-bottle section, suction carton section, forming part of the composition of folded, glue bonded parts, pneumatic part has electronically controlled part. Packaged according to customer requirements, from the filling machine out of single-channel feed for accurate grouping while the package sent by the suction mechanism used cardboard cartons delivered under each set of synchronization products, coordinated by forming a folding mechanism and spray adhesive means work to complete the final product packaging molding; various parts of sync by several synchronous servo motor and mechanical adjustments done to ensure the accuracy of each group of product packaging, qualified, beautiful.

2. The running speed are an adhesive, glue electronically adjustable length.

3. Simple touch operation, many security guarantees.

4. Standard chain and internationally renowned hot melt equipment, adapt to a variety of bottles, easy to adjust.

5. motors, cylinders and electronic control and other imported brand-name components, the use of standard components, reducing the amount of storage accessories.

6. compared with the traditional carton, can save 20 to 30% of the cartons area, saving raw materials and cost savings.

Applicable Products
Round, square, oval, proprietary bottle PET bottles and glass bottles. Suitable for food, beverage, cosmetic and other industries.



Technical Data Sheet

型号	Model	ZX-520-15	ZX-520-30	ZX-520-60
适应产量	Capacity	12000bph	24000bph	36000bph
包装类型	Packing type	片式纸箱/Wrap-around	片式纸箱/Wrap-around	片式纸箱/Wrap-around
纸箱尺寸	Carton size	L:200～600 W:200～400 H:120～350	L:200～600 W:200～400 H:120～350
进瓶方式	Infeed type	侧进式/Side-Loading	落差式/ Drop-Loading	直进式/ Drop-Loading
